The trackopt package tracks parameter value, gradient, and Hessian at each iteration of numerical optimizers in R. This can be useful for analyzing optimization progress, diagnosing issues, and studying convergence behavior.
Installation
You can install the released package version from CRAN with:
install.packages("trackopt")Example

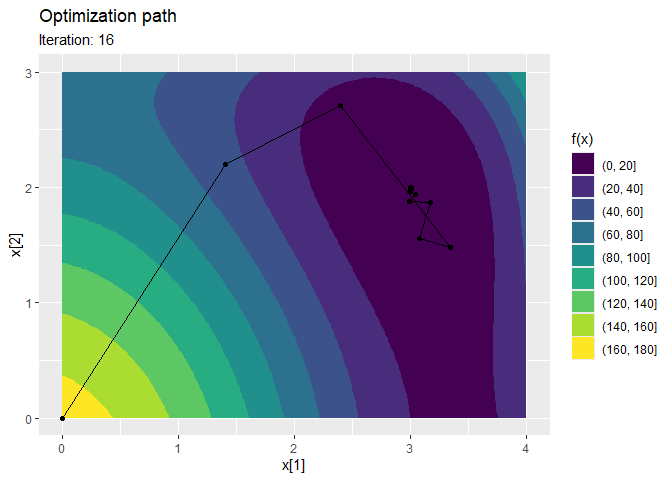

The following is the nlm minimization track of the Himmelblau’s function:
library("trackopt")
himmelblau <- function(x) (x[1]^2 + x[2] - 11)^2 + (x[1] + x[2]^2 - 7)^2
track <- nlm_track(f = himmelblau, p = c(0, 0))
print(track)
#> # A tibble: 17 × 7
#> iteration value step parameter gradient hessian seconds
#> * <dbl> <dbl> <dbl> <list> <list> <list> <dbl>
#> 1 0 170 0 <dbl [2]> <dbl [1]> <dbl [1]> 0
#> 2 1 47.4 -1.23e+2 <dbl [2]> <dbl [2]> <dbl [2 × 2]> 0.0262
#> 3 2 14.0 -3.34e+1 <dbl [2]> <dbl [2]> <dbl [2 × 2]> 0.00121
#> 4 3 4.91 -9.08e+0 <dbl [2]> <dbl [2]> <dbl [2 × 2]> 0.00163
#> 5 4 2.26 -2.65e+0 <dbl [2]> <dbl [2]> <dbl [2 × 2]> 0.00121
#> 6 5 0.951 -1.31e+0 <dbl [2]> <dbl [2]> <dbl [2 × 2]> 0.00101
#> 7 6 0.272 -6.79e-1 <dbl [2]> <dbl [2]> <dbl [2 × 2]> 0.000975
#> 8 7 0.0650 -2.07e-1 <dbl [2]> <dbl [2]> <dbl [2 × 2]> 0.000962
#> 9 8 0.0168 -4.82e-2 <dbl [2]> <dbl [2]> <dbl [2 × 2]> 0.000993
#> 10 9 0.00400 -1.28e-2 <dbl [2]> <dbl [2]> <dbl [2 × 2]> 0.00103
#> 11 10 0.000948 -3.06e-3 <dbl [2]> <dbl [2]> <dbl [2 × 2]> 0.000979
#> 12 11 0.000221 -7.28e-4 <dbl [2]> <dbl [2]> <dbl [2 × 2]> 0.00192
#> 13 12 0.0000512 -1.69e-4 <dbl [2]> <dbl [2]> <dbl [2 × 2]> 0.00101
#> 14 13 0.0000118 -3.94e-5 <dbl [2]> <dbl [2]> <dbl [2 × 2]> 0.00114
#> 15 14 0.00000275 -9.05e-6 <dbl [2]> <dbl [2]> <dbl [2 × 2]> 0.000990
#> 16 15 0.000000628 -2.13e-6 <dbl [2]> <dbl [2]> <dbl [2 × 2]> 0.000982
#> 17 16 0.000000152 -4.76e-7 <dbl [2]> <dbl [2]> <dbl [2 × 2]> 0.000979
summary(track)
#> Iterations: 16
#> Function improvement: 170 -> 1.521e-07
#> Computation time: 0.04317 seconds
#> Initial parameter: 0, 0
#> Final parameter: 3, 2
ggplot2::autoplot(track)

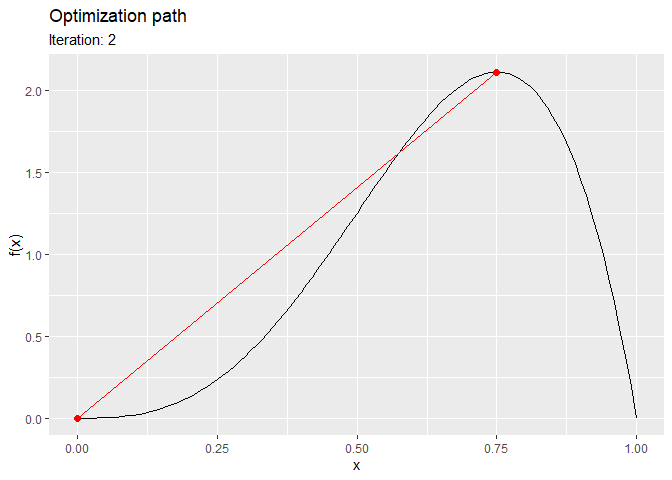

The following is the optim maximization track of the Beta-PDF:
optim_track(
f = dbeta, p = 0, lower = 0, upper = 1, shape1 = 4, shape2 = 2, method = "Brent", minimize = FALSE
) |> ggplot2::autoplot()
Contact
If you have any questions, found a bug, need a feature, just file an issue on GitHub.
