Nop Object

Source: R/nop.R
Nop.Rd

A Nop object defines a numerical optimization problem.

Getting started

Step 1: Create a Nop object

Call object <- Nop$new(f, target, npar, ...) where

  • f is the objective function,

  • target are the names of the target arguments,

  • npar specifies the lengths of the target arguments,

  • and ... are additional arguments for f.

You can now evaluate the objective function via the $evaluate() method.

Step 2: Specify numerical optimizers

Call object$set_optimizer(<optimizer object>), where <optimizer object> is an object of class optimizer, which can be created via the {optimizeR} package (please refer to the package homepage for details).

For example,

  • optimizeR::Optimizer$new(which = "stats::nlm") defines the nlm optimizer,

  • optimizeR::Optimizer$new(which = "stats::optim") defines the optim optimizer.

Step 3: Select initial values

Call initialization methods to define starting values for the optimization (the different initialization strategies are illustrated in the package vignettes), for example:

  • object$initialize_fixed() for fixed initial values,

  • object$initialize_random() for random initial values,

  • object$initialize_continue() for initial values based on parameter estimates from previous optimization runs.

Step 4: Optimization

Call object$optimize() for the optimization.

Step 5: Analyze the results

  • $results returns a tibble of the optimization results,

  • $optima() lists all identified optima,

  • $minimum and $maximum return the best minimizer and maximizer

Progress during optimization

Displaying progress during multiple optimization runs via the {progressr} package is supported. To get started, run

progressr::handlers(global = TRUE)

and see handlers for details.

Parallel optimization

Parallel computation of multiple optimization runs via the {future} package is supported. To get started, run one of

future::plan(future::multisession)

and see plan for details.

Active bindings

initial_values

[list(), read-only]
The currently defined initial values.

Use the initialize_*() methods to add, transform, and reset values.

results

[tibble, read-only]
Optimization results with identifiers:

  • ".optimization_label" (identifies the optimization run)

  • ".optimizer_label" (identifies the optimizer)

  • ".direction" (identifies the optimization direction)

  • ".original" (identifies results obtained on the original problem)

The output has an associated autoplot method.

minimum

[list(2), read-only]
Best value and parameter across all (original) minimizations.

maximum

[list(2), read-only]
Best value and parameter across all (original) maximizations.

npar

[integer(), read-only]
The length of each target argument.

verbose

[logical(1)]
Print progress and details?

fresh_label

[character(1), read-only]
An optimization label that has not been used yet.

Methods

Public methods

Method new()

Creates a new Nop object.

The output has an associated autoplot method.

Usage

Nop$new(f, target = NULL, npar, gradient = NULL, hessian = NULL, ...)

Arguments

f

[function]
A function to be optimized (the so-called objective function).

It is expected that

  1. f has at least one numeric argument,

  2. the return value of f is of the structure numeric(1).

target

[character()]
The argument name(s) that get optimized (the so-called target arguments).

All target arguments must be numeric.

Can be NULL (default), then the first function argument is selected.

npar

[integer()]
The length of each target argument, i.e., the length(s) of the argument(s) specified via target.

gradient

[function | NULL]
Optionally a function that returns the gradient of f.

The function call of gradient must be identical to f.

Ignored for optimizers that do not support user-supplied gradient.

hessian

[function | NULL]
Optionally a function that returns the Hessian of f.

The function call of hessian must be identical to f.

Ignored for optimizers that do not support user-supplied Hessian.

...

Optionally additional function arguments passed to f (and gradient and hessian, if specified) that are fixed during the optimization.

Method fixed_argument()

Manages fixed arguments for the objective function.

Usage

Nop$fixed_argument(action, ...)

Arguments

action

[character(1)]
One of:

  • "set" to set an argument,

  • "get" to extract an argument value,

  • "remove" to remove an argument,

  • "reset" to reset an argument to its original value,

  • "modify" to modify an argument value.

Note that "set" overrides an argument value, while "modify" preserves the original value, which can be recovered via "reset".

...

Additional parameters depending on action:

  • named arguments if action = "set" or "modify",

  • a single argument name if action = "get", "remove", or "reset".

Method reduce_argument()

Reduces a fixed argument for the objective function.

Usage

Nop$reduce_argument(
  argument_name,
  proportion = 0.5,
  how = "random",
  centers = 2L,
  byrow = TRUE,
  ignore = integer()
)

Arguments

argument_name

[character(1)]
The name of a fixed argument for the objective function.

proportion, how, centers, byrow, ignore

Passed on to portion.

Method standardize_argument()

Standardizes a fixed argument for the objective function.

Usage

Nop$standardize_argument(
  argument_name,
  center = TRUE,
  scale = TRUE,
  byrow = FALSE,
  ignore = integer(),
  jointly = list()
)

Arguments

argument_name

[character(1)]
The name of a fixed argument for the objective function.

center, scale, byrow, ignore, jointly

Passed on to normalize.

Method print()

Prints details of the Nop object.

Usage

Nop$print(...)

Arguments

...

Currently not used.

Method evaluate()

Evaluates the objective function.

Usage

Nop$evaluate(
  at = rep(0, sum(self$npar)),
  .gradient_as_attribute = FALSE,
  .hessian_as_attribute = FALSE
)

Arguments

at

[numeric()]
The values for the target argument(s), written in a single vector.

Must be of length sum(self$npar).

.gradient_as_attribute, .hessian_as_attribute

[logical(1)]
Add gradient and / or Hessian value as attributes?

If gradient and / or Hessian function is not specified, numerical approximation is used.

Method set_optimizer()

Specifies a numerical optimizer.

Usage

Nop$set_optimizer(optimizer, optimizer_label = optimizer$label)

Arguments

optimizer

[Optimizer]
An Optimizer object, which can be created via Optimizer.

optimizer_label

[character(1)]
A (unique) label for the optimizer.

Method initialize_fixed()

Defines fixed initial values for the optimization.

Usage

Nop$initialize_fixed(at)

Arguments

at

[integer(self$sum(npar)) | list()]
The fixed initial parameter vector.

It can also be a list of such vectors.

Method initialize_random()

Defines random initial values for the optimization.

Usage

Nop$initialize_random(
  runs = 1L,
  sampler = function() stats::rnorm(sum(self$npar))
)

Arguments

runs

[integer(1)]
The number of optimization runs.

sampler

[function]
A function without any arguments that returns a numeric vector of length sum(self$npar).

Method initialize_grid()

Defines a grid of initial values for the optimization.

Usage

Nop$initialize_grid(lower = 0, upper = 1, breaks = 3, jitter = FALSE, ...)

Arguments

lower, upper

[numeric(1) | numeric(self$sum(npar))]
Lower and upper grid bounds for each parameter dimension.

breaks

[integer(1) | integer(self$sum(npar))]
The number of breaks for each parameter dimension.

jitter

Add noise to the grid points for a random grid layout?

...

Optional parameters passed to jitter.

Method initialize_custom()

Defines custom initial values for the optimization.

Usage

Nop$initialize_custom(at, seconds = rep(0, length(at)), type = "custom")

Arguments

at

[list()]
A list of initial parameter vectors.

seconds

[numeric(length(at))]
The number of seconds it took to obtain each initial value in at, which is added to the overall optimization time.

type

[character(1)]
The type of the initial values.

Method initialize_continue()

Defines initial values based on results from previous optimizations.

Usage

Nop$initialize_continue(optimization_label)

Arguments

optimization_label

[character(1)]
Label of optimization runs from which to select.

Method initialize_filter()

Filters initial values from the defined initial values.

Usage

Nop$initialize_filter(condition)

Arguments

condition

[character(1)]
Defines the condition on which the initial values are filtered, one of:

  • "gradient_negative for points where the gradient is negative,

  • "gradient_positive for points where the gradient is negative,

  • "hessian_negative" for points where the Hessian is negative definite,

  • "hessian_positive" for points where the Hessian is positive definite.

Method initialize_promising()

Selects promising initial values from the defined initial values.

Usage

Nop$initialize_promising(proportion, condition)

Arguments

proportion

[numeric(1)]
The proportion of selected from the defined initial values.

condition

[character(1)]
Defines the condition on which the initial values are selected, one of:

  • "value_small" for points where the function value is smallest,

  • "value_large" for points where the function value is largest,

  • "gradient_small" for points where the gradient norm is smallest,

  • "gradient_large" for points where the gradient norm is largest,

  • "condition_small" for points where the Hessian condition is smallest,

  • "condition_large" for points where the Hessian condition is largest.

Method initialize_transform()

Transforms the currently defined initial values.

Usage

Nop$initialize_transform(transformer = function(x) x)

Arguments

transformer

[function()]
A function that receives and returns a numeric() of length sum(self$npar).

Method initialize_reset()

Resets the currently defined initial values.

Usage

Nop$initialize_reset()

Method optimize()

Optimizes the target function.

Usage

Nop$optimize(
  optimization_label = self$fresh_label,
  which_optimizer = "all",
  which_direction = "min",
  lower = NULL,
  upper = NULL,
  seconds = Inf,
  hide_warnings = TRUE,
  reset_initial_afterwards = TRUE
)

Arguments

optimization_label

[character(1)]
A label for the optimization to distinguish optimization runs.

Setting a label is useful when using the $initialize_continue() method.

which_optimizer

[character() | integer()]
Selects numerical optimizers. Either:

  • "all" for all specified optimizers,

  • specific optimizer labels,

  • specified optimizer ids as defined in the print() output.

which_direction

[character()]
Selects the direction of optimization. One or both of:

  • "min" for minimization,

  • "max" for maximization.

lower, upper

[numeric() | NULL]
Optionally lower and upper parameter bounds.

Ignored for optimizers that do not support parameter bounds.

seconds

[numeric(1)]
A time limit in seconds.

Optimization is interrupted prematurely if seconds is exceeded.

Note the limitations documented in setTimeLimit.

hide_warnings

[logical(1)]
Hide any warnings during optimization?

reset_initial_afterwards

[logical(1)]
Reset the initial values after the optimization?

Details

Supports:

  • Parallel computation of multiple optimization runs via {future}

  • Progress messages via {progressr}

Method optima()

Lists all identified optima.

The output has an associated autoplot method.

Usage

Nop$optima(
  which_direction = "min",
  only_original = TRUE,
  group_by = NULL,
  sort_by_value = FALSE,
  digits = getOption("digits", default = 7)
)

Arguments

which_direction

[character()]
Selects the direction of optimization. One or both of:

  • "min" for minimization,

  • "max" for maximization.

only_original

[`logical(1)]
Include only optima obtained on the original problem?

group_by

[`character(1)]
Selects how the output is grouped. Either:

  • NULL to not group,

  • "optimization" to group by optimization label,

  • `"optimizer"“ to group by optimizer label.

sort_by_value

[`logical(1)]
Sort by value? Else, sort by frequency.

digits

[`integer(1)]
The number of decimal places.

Method deviation()

Compute deviations with respect to a reference parameter.

The output has an associated autoplot method.

Usage

Nop$deviation(
  reference = rep(0, sum(self$npar)),
  which_element = "initial",
  which_direction = "min",
  which_optimizer = "all",
  only_original = TRUE,
  parameter_labels = paste0("x", seq_len(sum(self$npar)))
)

Arguments

reference

[numeric()]
The reference vector of length sum(self$npar).

which_element

[`character(1)]
Either

  • "initial" for deviations with respect to the initial values, or

  • "parameter" for deviations with respect to the estimated parameters.

which_direction

[character()]
Selects the direction of optimization. One or both of:

  • "min" for minimization,

  • "max" for maximization.

which_optimizer

[character() | integer()]
Selects numerical optimizers. Either:

  • "all" for all specified optimizers,

  • specific optimizer labels,

  • specified optimizer ids as defined in the print() output.

only_original

[`logical(1)]
Include only optima obtained on the original problem?

parameter_labels

[character()]
Labels for the parameters of length sum(self$npar).

Method clone()

The objects of this class are cloneable with this method.

Usage

Nop$clone(deep = FALSE)

Arguments

deep

Whether to make a deep clone.

Examples

### define objective function, optimizer and initial values
Nop_ackley <- Nop$new(f = TestFunctions::TF_ackley, npar = 2)$
  set_optimizer(optimizeR::Optimizer$new(which = "stats::nlm"))$
  initialize_random(runs = 20)

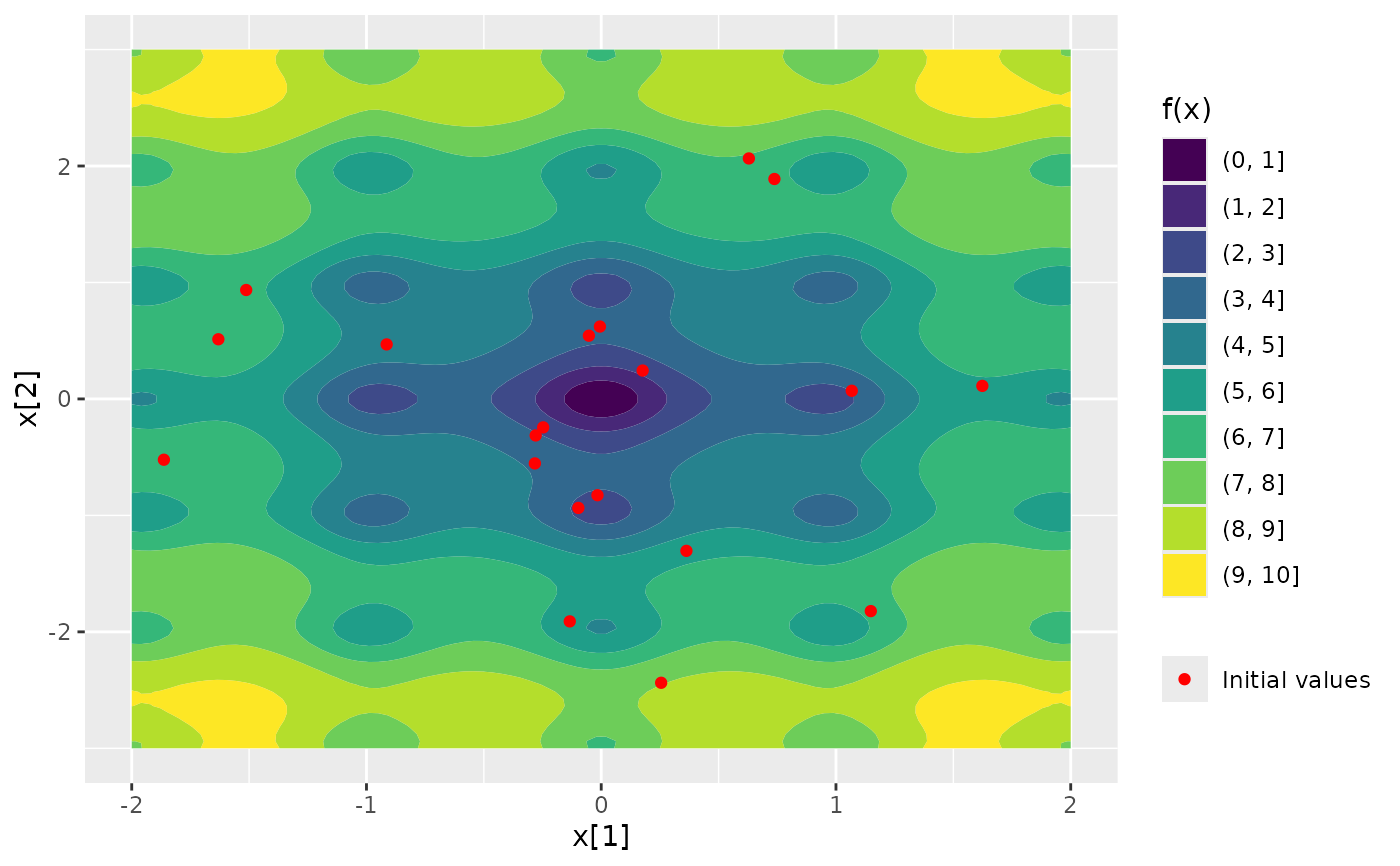

### plot function surface and initial values
Nop_ackley |> ggplot2::autoplot()


### minimize objective function
Nop_ackley$optimize(which_direction = "min")

### show optima
Nop_ackley$optima(digits = 0)
#> # A tibble: 3 × 2
#>   value     n
#> * <dbl> <int>
#> 1     0     8
#> 2     3     6
#> 3     5     6

### show best value and parameter across all minimizations
Nop_ackley$minimum
#> $value
#> [1] 4.10729e-07
#>
#> $parameter
#> [1] -1.395097e-07 -4.030215e-08
#>
